Low alloyed high speed steel refers to the high speed steel with tungsten (＝W＋1.8Mo) content between 6.50 and 11.75%. Hot strength and wear resistance of low alloyed high speed steel is somewhat reduced, but can still be applied for tool materials with l

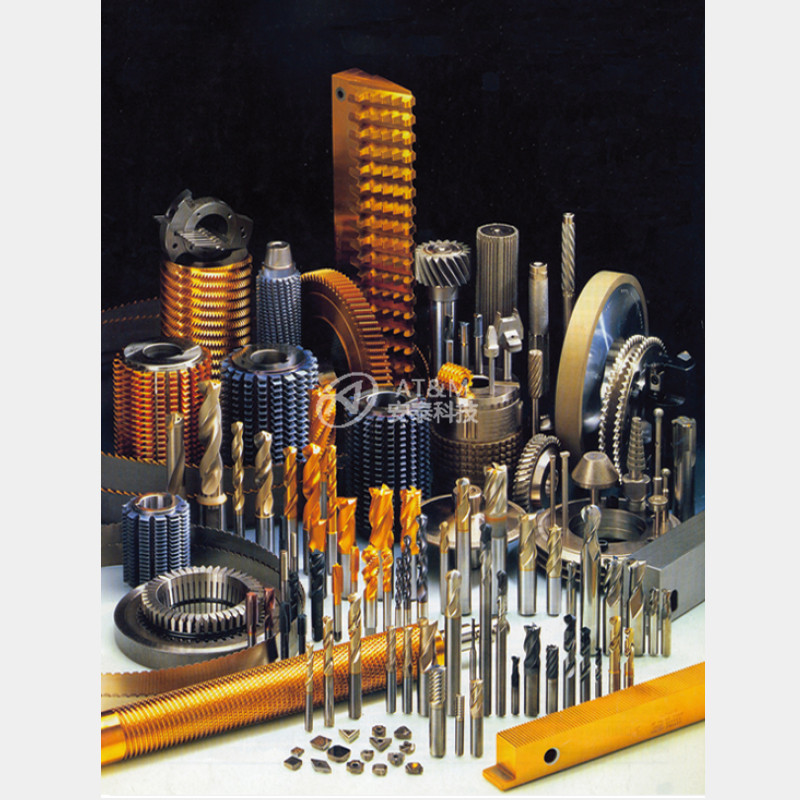

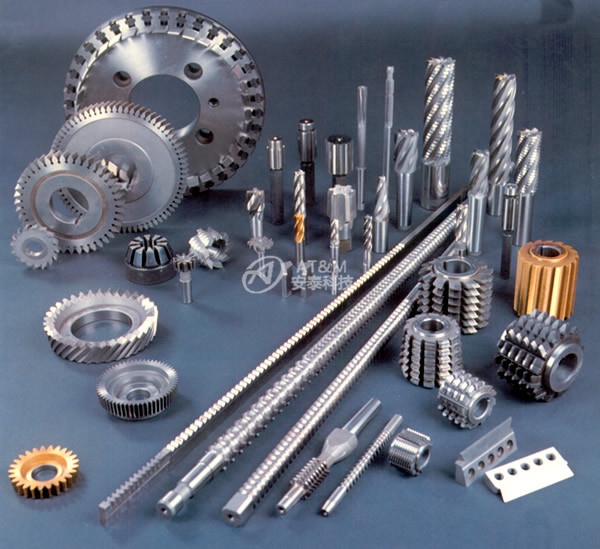

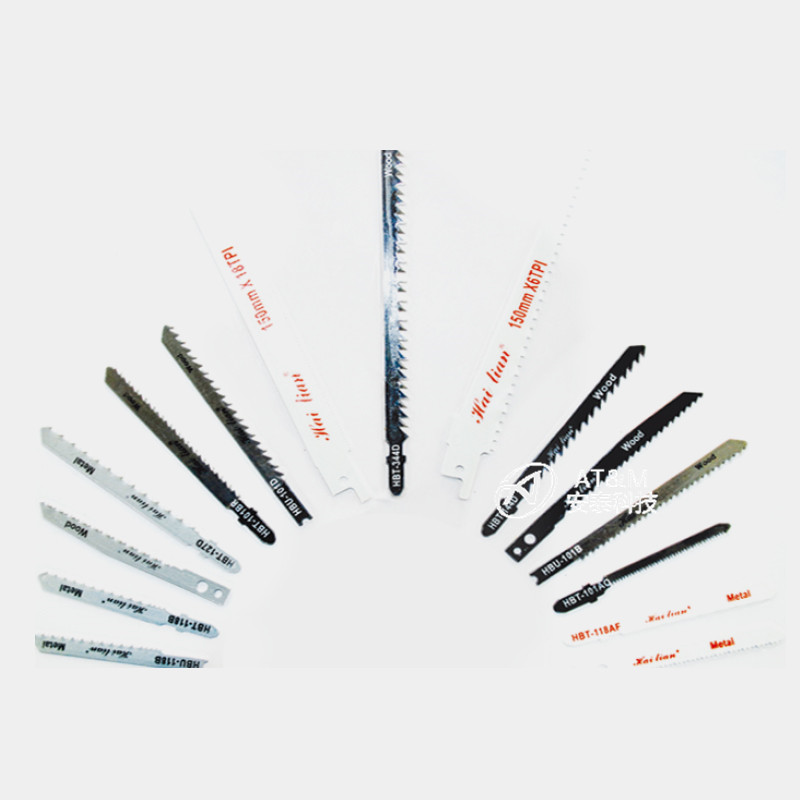

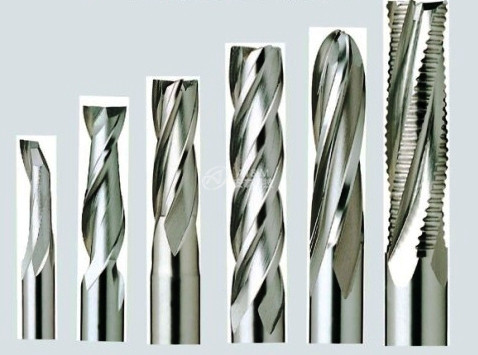

Low alloyed high speed steel refers to the high speed steel with tungsten (＝W＋1.8Mo)content of 6.50-11.75%.Low alloyed high speed steel has characteristics of high carbon content and alloyed with secondary hardening alloying elements replacing the expensive elements such as tungsten and molybdenum. Hardness can reach HRC63-65 after quenching and tempering. High temperature strength and wear resistance of the steel is slightly reduced but it can still be applied for the tool materials with low cutting speed.
| Type | Specification (mm) | Surface condition |
|---|---|---|

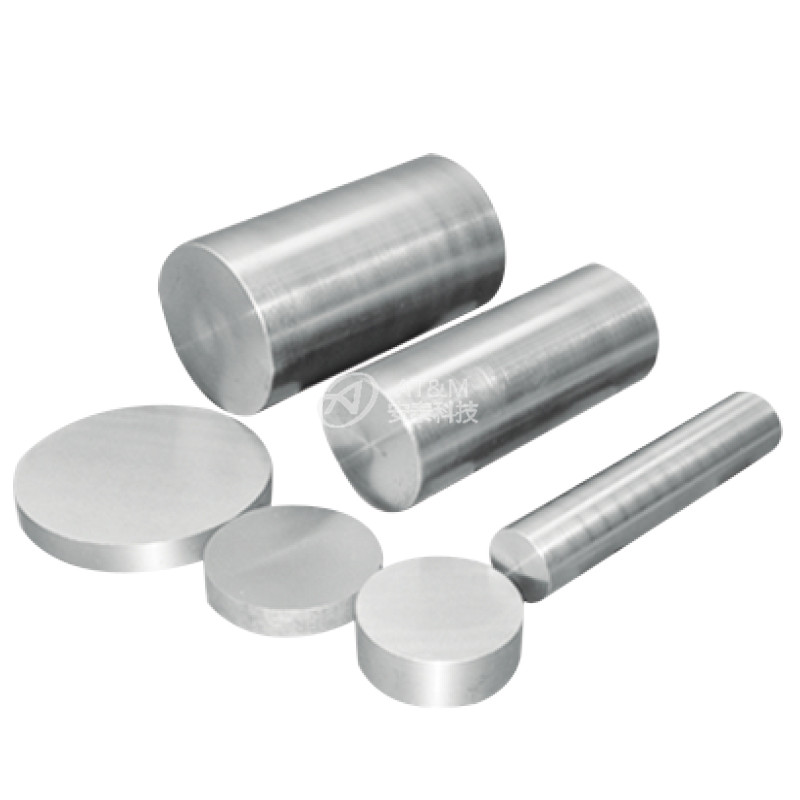

| Forged Round Bar | ∮80-400 | Wheeled/Turned |

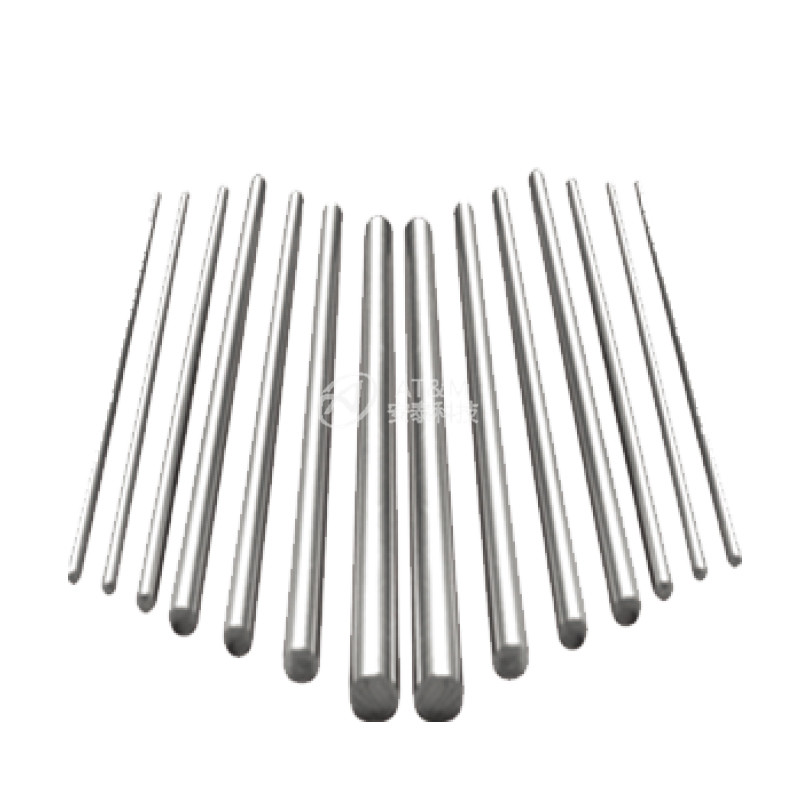

| Hot-rolled Round Bar | ∮8-25 | Black |
| ∮21-95 | Turned /Peeled | |
| Peeled Bar | ∮15-150 | Turned |

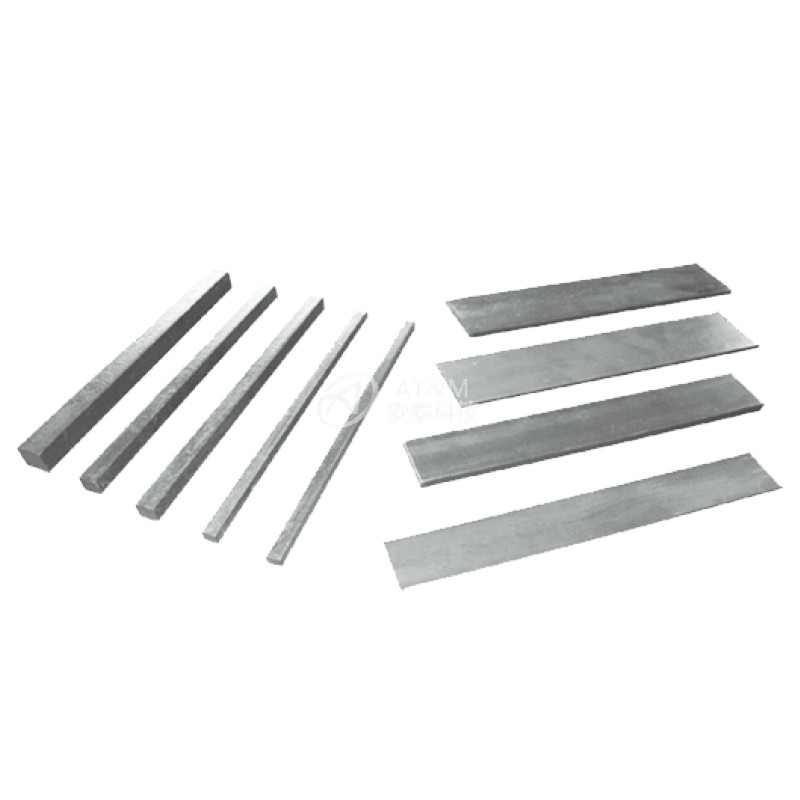

| Hot-rolled Square Bar | 7.2×7.2～27×27 | Black |
| Hot-rolled Flat Bar | (3.5-40)×(16-100) | Black/Shot Blast |

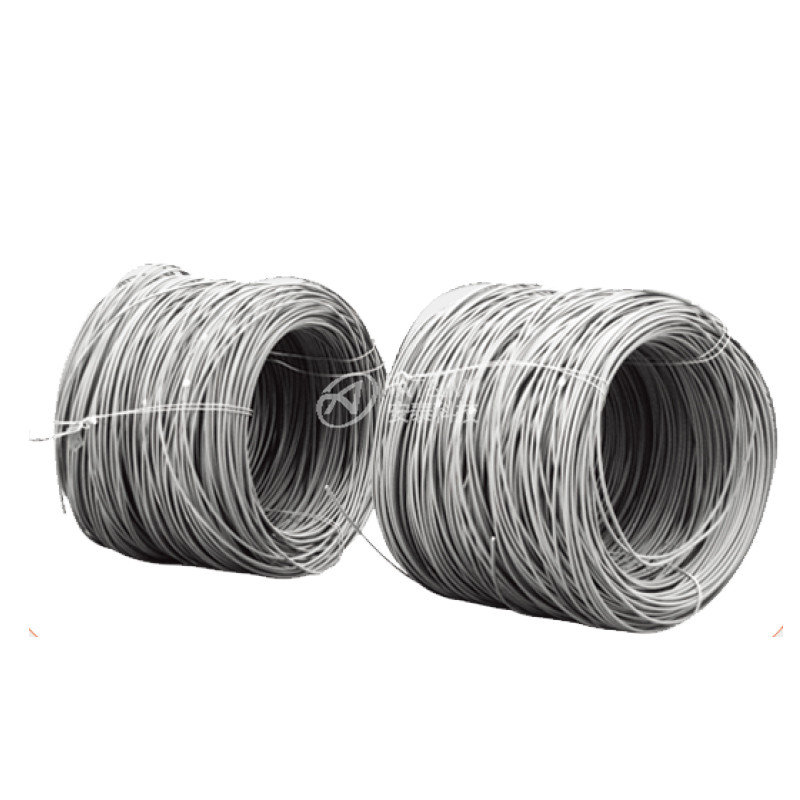

| Hot-rolled Wire Rod | ∮5.5-17 | Black |
| Cold-drawn Steel Wire | ∮2.0-16.5 | Black |
| Ground Wire | ∮5.0-14.5 | Ground |
| Steel Plate | (2.0-15.0)×(500-700) | Black |

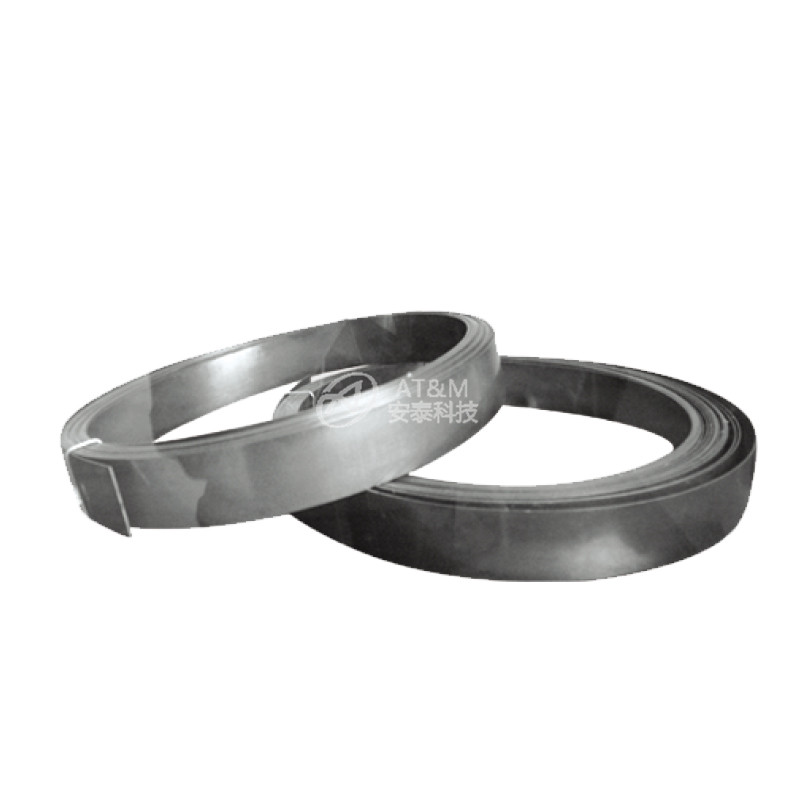

| Hot-rolled Strip | (36-65)×(1.5-3.0) | Black |
| Cold-rolled Strip | (25-55)×(0.65-1.80) | Polished |
| Forged Product | Circular ∮(50-350)×(10-300) | Black /Machined |
| Rectangle (20-200)×(5-80) |
