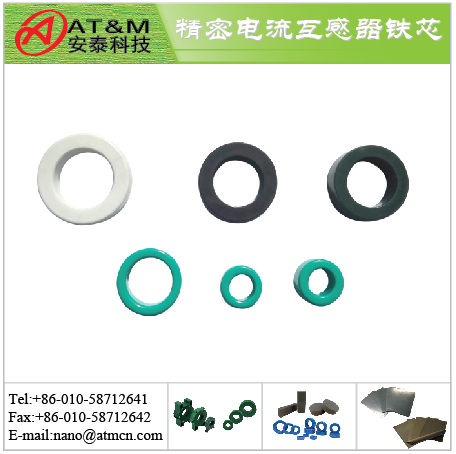

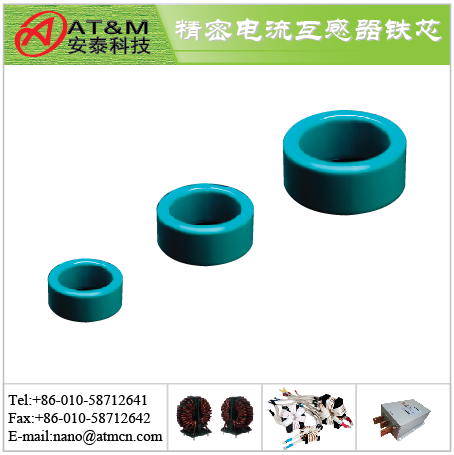

电流互感器铁芯 Current Transformer Cores

高磁导率、低矫顽力 High permeability, low coercivity, 宽的电流测量范围 Wide measurement current range

型号:MCXXX、EC制造商:安泰科技股份有限公司
联系人:孙经理原产地:北京市海淀区
邮箱:nano@atmcn.com电话:+86-010-58712641/2664/2675/2661/2658
更多相关产品

 一、产品介绍(Introduction):


电流互感器是可分为测量用和保护用电流互感器。测量用电流互感器主要与测量仪表配合,在线路正常工作状态下,用来测量线路上的电流、功率和电能等;保护用电流互感器则与继电装置配合,当线路发生短路、过电流等故障时,向继电装置供电切断故障线路,以保护线路中的贵重设备,如发电机和变压器等。

Current transformer can be divided into measuring current transformer and protection current transformer. The measuring current transformer is mainly used in conjunction with measuring instrument to measure current, power and electric energy under normal working state. The protection current transfimage.pngormer cooperating with relay device will cut off the line in case of faults such as short circuit or over current to protect valuable equipment in the line, such as generator and transformer.


 二、产品特点(Characteristic):


—高磁导率、低矫顽力

High permeability, low coercivity

— 宽的电流测量范围

Wide measurement current range

— 优异的温度稳定性

Excellent temperature stability

— 优异的抗饱和特性

Excellent performance on DC immue


 三、产品应用(Application):


·电子电度表(Electronic watt hour meter)

·精密功率表(Precision power meter)

·机械控制中电流过载保护(Current overload protection in mechanical control)

·工业自动化中电流控制(Current control in industrial automation)

·漏电保护开关(Leakage protection switch)

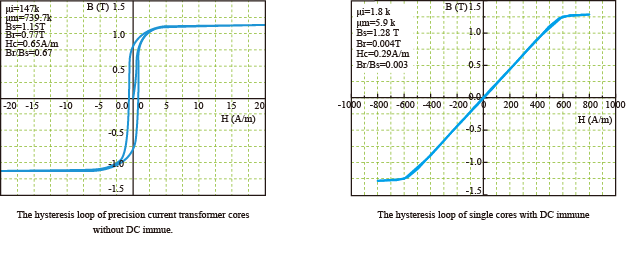

 四、性能曲线(Performance):






产品选型表(Product selection table):
