Sintered NdFeB Magnets

NdFeB magnet has the highest properties (high residual induction, coercive force and energy product) in a competitive price. It can be machined into all kinds of shapes easily and used in many fundamental fields directly, such as telecommunication...

Specification:NdFeB
Manufacturer:AT&M BEIJING CAPITAL AIRPORT DISTRICT BRANCH
Contact Person:ZHU JING GUOOrigin:BEIJING
Email:Sales.magnet@atmcn.comTel:010-80485836
More

Advanced Technology & Materials Co.,Ltd (AT&M) has a long historical standing and is one of the world leading manufacturer in R&D and production of NdFeB magnets in China. AT&M was honored with one state invention awards(the third grade), two state awards for science and technology advancement (the first grade and the second grade), as well as 25 patents.

AT&M achieved the certification of ISO9001 in Nov 2003; ISO14000&OHSAS18000 in Oct 2006; ISO/TS16949 in Aug 2007, held the manufacture license and sold sintered NdFeB magnets under SSMC (NEOMAX) patents in 2003. Nowadays, AT&M has a production capacity of 4000 tons for NdFeB magnets with middle or higher grade annually.




Description of Grades for the Sintered NdFeB Magnets:

· Nd-Fe-B magnet--------ATMAX##XX

· ATMAX: The magnet produced by AT&M Co.,Ltd.
       ##: The typical value of (BH)m.
        X X: The typical value of intrinsic coercive force.

For example: ATMAX40H is a sintered NdFeB magnet with (BH)m of 38~41MGOe, and Hcj≥17kOe.


Physical Properties Of Sintered NdFeb Material

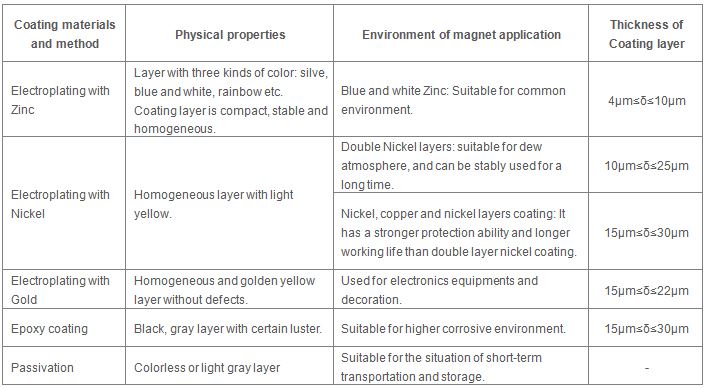

Physical Properties and Application to  Environment of the Coating



NdFeB Magnet Machining And Service:

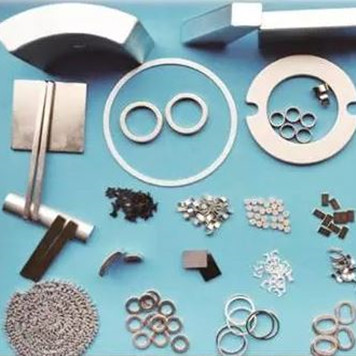

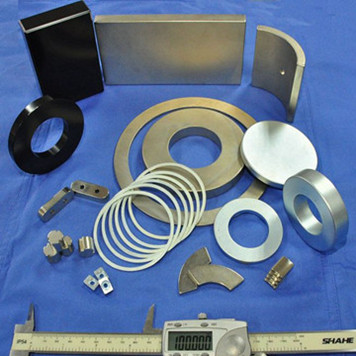

· All kinds of shapes of magnets can be supplied after grinding, electric wire spark cutting, mechanical drilling and cutting, and other methods.

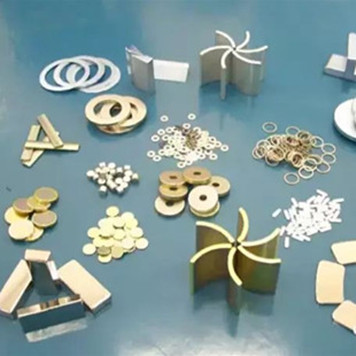

· All kinds of magnets with coating can be supplied, such as electric coating, electroplating and phosphorizing and so on. It is guaranteed that the product will have a good appearance and anti-corrosion characteristics.
· The magnet can be magnetized in single, multi and radial directions.
· According to the needs of customers, magnet can be aged, demagnetized, re-magnetized after demagnetization.
· The chemical compositions of raw materials and magnets can be analyzed by ICP. The magnet microstructure can be observed by microscope and magnetic powder size distribution measured by the Laser Particle Size Analyzer. The magnetic properties can be tested by means of B-H tester at both ambient and high temperatures.
· The coating layer can be analyzed by means of SST, PCT, HHT, dropping and layer thickness tester.
· The magnetic circuit analysis and design can be offered for customer.
· Magnets with special characteristics are also available at the request of customers.






Magnetic Properties of Sintered NdFeB Magnets

牌号

剩磁Br

矫顽力/Hcb ≥

矫顽力/Hcj ≥

最大磁能积(BH)max

Grade

T

KGs

kA/m

kOe

kA/m

kOe

kJ/m3

MGOe

ATMAX35

1.16~1.22

11.6~12.2

876

11

955

12

263~287

33~36

ATMAX38

1.22~1.27

12.2~12.7

876

11

955

12

287~310

36~39

ATMAX40

1.25~1.31

12.5~13.1

876

11

955

12

302~326

38~41

ATMAX42

1.28~1.34

12.8~13.4

876

11

955

12

318~342

40~43

ATMAX45

1.32~1.38

13.2~13.8

876

11

955

12

342~366

43~46

ATMAX48

1.36~1.43

13.6~14.3

836

10.5

955

12

358~390

45~49

ATMAX50

1.39~1.46

13.9~14.6

836

10.5

955

12

374~406

47~51

ATMAX52

1.42~1.49

14.2~14.9

836

10.5

955

12

390~422

49~53

ATMAX35M

1.16~1.22

11.6~12.2

845

10.6

1114

14

263~287

33~36

ATMAX38M

1.22~1.27

12.2~12.7

845

10.6

1114

14

287~310

36~39

ATMAX40M

1.25~1.31

12.5~13.1

912

11.5

1114

14

302~326

38~41

ATMAX42M

1.28~1.34

12.8~13.4

938

11.8

1114

14

318~342

40~43

ATMAX45M

1.32~1.38

13.2~13.8

976

12.2

1114

14

342~366

43~46

ATMAX48M

1.36~1.43

13.6~14.3

1012

12.7

1114

14

358~390

45~49

ATMAX50M

1.39~1.46

13.9~14.6

1035

13

1114

14

374~406

47~51

ATMAX33H

1.12~1.19

11.2~11.9

816

10.2

1353

17

247~271

31~34

ATMAX35H

1.16~1.22

11.6~12.2

845

10.6

1353

17

263~287

33~36

ATMAX38H

1.21~1.27

12.1~12.7

886

11.1

1353

17

287~310

36~39

ATMAX40H

1.25~1.31

12.5~13.1

912

11.5

1353

17

302~326

38~41

ATMAX42H

1.28~1.34

12.8~13.4

938

11.8

1353

17

318~342

40~43

ATMAX42H+

1.28~1.34

12.8~13.4

938

11.8

1512

19

318~342

40~43

ATMAX45H

1.32~1.38

13.2~13.8

976

12.2

1353

17

342~366

43~46

ATMAX48H

1.36~1.43

13.6~14.3

1000

12.6

1274

16

358~390

45~49

ATMAX50H

1.39~1.46

13.9~14.6

1035

13

1274

16

374~406

47~51

ATMAX30SH

1.07~1.14

10.7~11.4

772

9.7

1592

20

223~247

28~31

ATMAX33SH

1.12~1.19

11.2~11.9

816

10.2

1592

20

247~271

31~34

ATMAX35SH

1.16~1.22

11.6~12.2

845

10.6

1592

20

263~287

33~36

ATMAX38SH

1.21~1.27

12.1~12.7

886

11.1

1592

20

287~310

36~39

ATMAX38SH+

1.21~1.27

12.1~12.7

886

11.1

1752

22

287~310

36~39

ATMAX40SH

1.25~1.31

12.5~13.1

912

11.5

1592

20

302~326

38~41

ATMAX42SH

1.28~1.34

12.8~13.4

938

11.8

1592

20

318~342

40~43

ATMAX42SH+

1.28~1.34

12.8~13.4

938

11.8

1752

22

318~342

40~43

ATMAX45SH

1.32~1.38

13.2~13.8

976

12.2

1592

20

342~366

43~46

ATMAX30UH

1.07~1.14

10.7~11.4

772

9.7

1990

25

223~247

28~31

ATMAX33UH

1.12~1.19

11.2~11.9

816

10.2

1990

25

247~271

31~34

ATMAX35UH

1.16~1.22

11.6~12.2

845

10.6

1990

25

263~287

33~36

ATMAX38UH

1.21~1.27

12.1~12.7

886

11.1

1990

25

287~310

36~39

ATMAX40UH

1.25~1.31

12.5~13.1

912

11.5

1990

25

302~326

38~41

ATMAX42UH

1.28~1.34

12.8~13.4

938

11.8

1990

25

318~342

40~43

ATMAX45UH

1.31~1.37

13.1~13.7

976

12.2

1910

24

318~342

43~46

ATMAX31AH

1.09~1.16

10.9~11.6

772

9.7

2149

27

231~263

29~33

ATMAX34AH

1.15~1.22

11.5~12.2

836

10.5

2149

27

255~287

32~36

ATMAX37AH

1.20~1.26

12.0~12.6

886

11.1

2149

27

279~310

35~39

ATMAX40AH

1.25~1.31

12.5~13.1

912

11.5

2149

27

302~326

38~41

ATMAX30EH

1.07~1.14

10.7~11.4

772

9.7

2388

30

223~247

28~31

ATMAX33EH

1.12~1.19

11.2~11.9

816

10.2

2388

30

247~271

31~34

ATMAX35EH

1.16~1.22

11.6~12.2

845

10.6

2388

30

263~287

33~36

ATMAX38EH

1.21~1.27

12.1~12.7

886

11.1

2388

30

279~310

35~39

ATMAX30TH

1.06~1.15

10.6~11.5

765

9.6

2627

33

223~255

28~32

ATMAX33TH

1.12~1.19

11.2~11.9

816

10.2

2627

33

247~271

31~34

ATMAX35TH

1.16~1.22

11.6~12.2

845

10.6

2627

33

263~287

33~36

ATMAX38TH

1.21~1.27

12.1~12.7

886

11.1

2627

33

279~310

35~39










牌号

剩磁Br

矫顽力/Hcb ≥

矫顽力/Hcj ≥

最大磁能积(BH)max

Grade

T

KGs

kA/m

kOe

kA/m

kOe

kJ/m3

MGOe

ATMAX52H-DD

1.42~1.49

14.2~14.9

886

11.1

1353

17

390~422

49~53

ATMAX50SH-DD

1.39~1.46

13.9~14.6

1035

13

1592

20

374~406

47~51

ATMAX45H-DD

1.32~1.38

13.2~13.8

976

12.2

1990

25

342~366

43~46

ATMAX43AH-DD

1.30~1.36

13.0~13.6

960

12

2149

27

318~342

40~43

ATMAX40EH-DD

1.25~1.31

12.5~13.1

912

11.5

2388

30

302~326

38~41

ATMAX38TH-DD

1.21~1.27

12.1~12.7

886

11.1

2627

33

279~310

35~39

ATMAX52SH-TD

1.42~1.49

14.2~14.9

886

11.1

1592

20

390~422

49~53

ATMAX50SH+-TD

1.39~1.46

13.9~14.6

1035

13

1752

22

374~406

47~51

ATMAX48UH-TD

1.36~1.43

13.6~14.3

1000

12.6

1990

25

358~390

45~49

ATMAX45AH-DD

1.32~1.38

13.2~13.8

976

12.2

2149

27

342~366

43~46

ATMAX42EH-DD

1.28~1.34

12.8~13.4

938

11.8

2388

30

318~342

40~43

ATMAX40TH-DD

1.25~1.31

12.5~13.1

912

11.5

2627

33

302~326

38~41
